User Instructions

Flexible heated hoses are designed to provide consistent temperature control for safe and efficient material transfer.

Get In Touch

i. General Instructions

  1. Do not apply any motion or bending stress directly to the hose fittings.
  2. Keep within the allowed bend radius (see il., below).
  3. Prior to disconnecting the hoses, depressurize the system completely.
  4. Always use two (2) wrenches when disconnecting hoses. Loosen slowly, wear protective clothing.

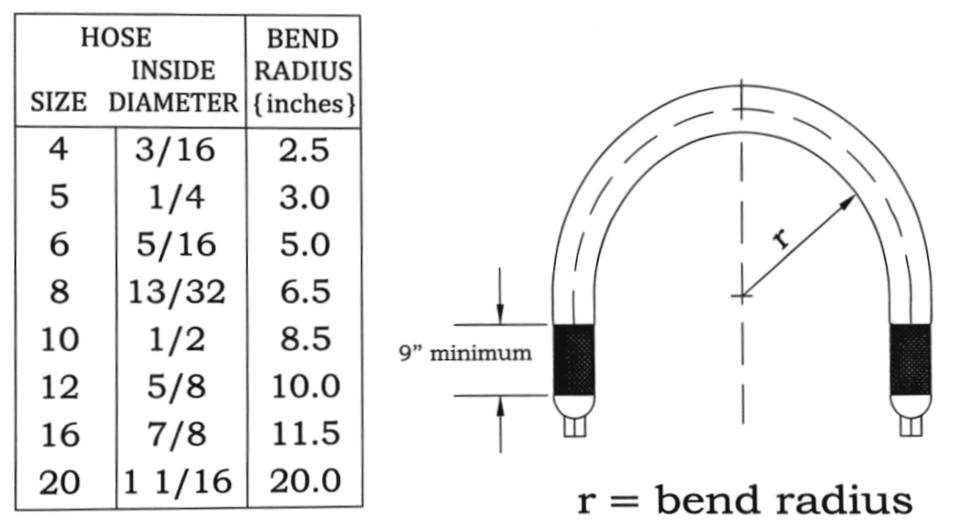

ii. Allowable Bend Radius

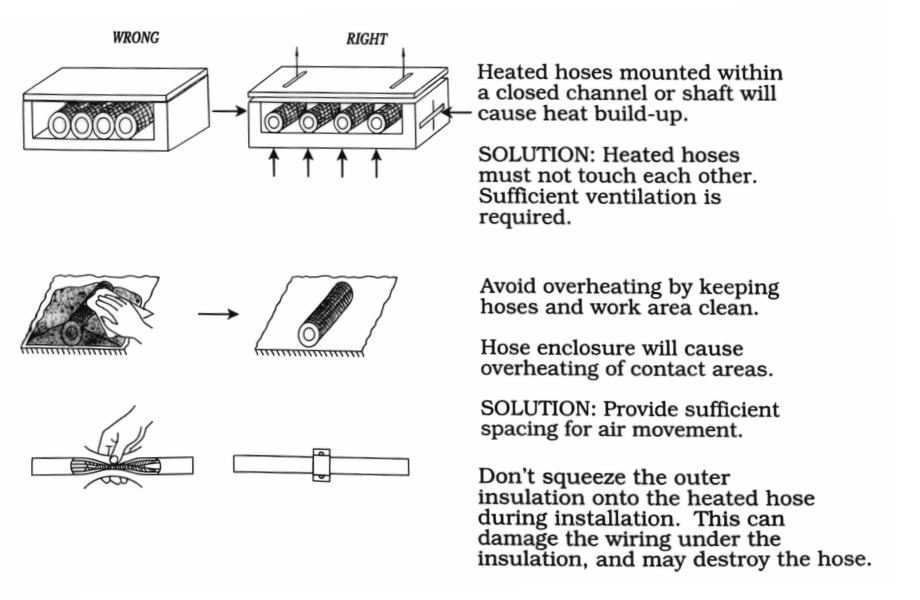

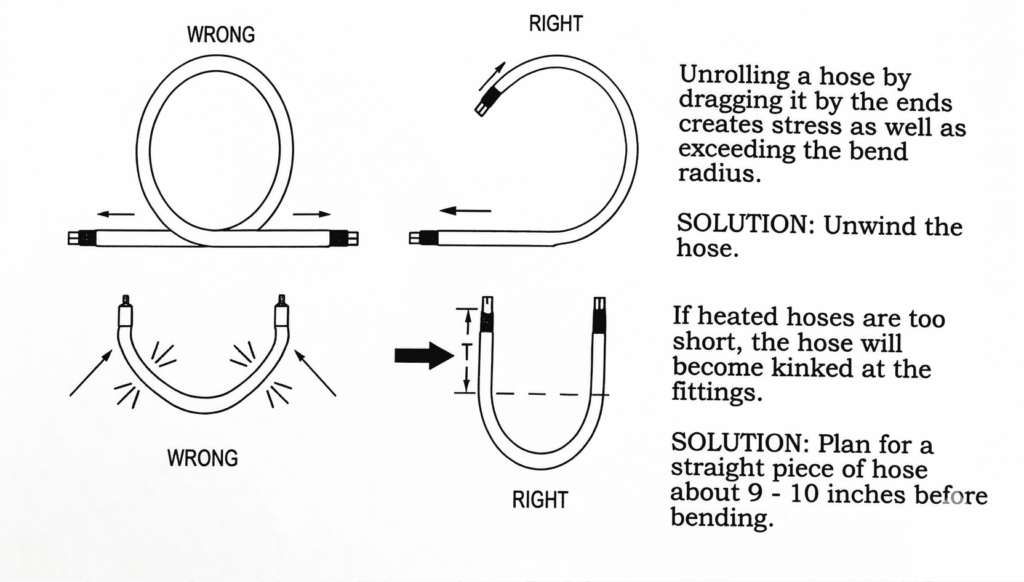

iii. Handling Instructions

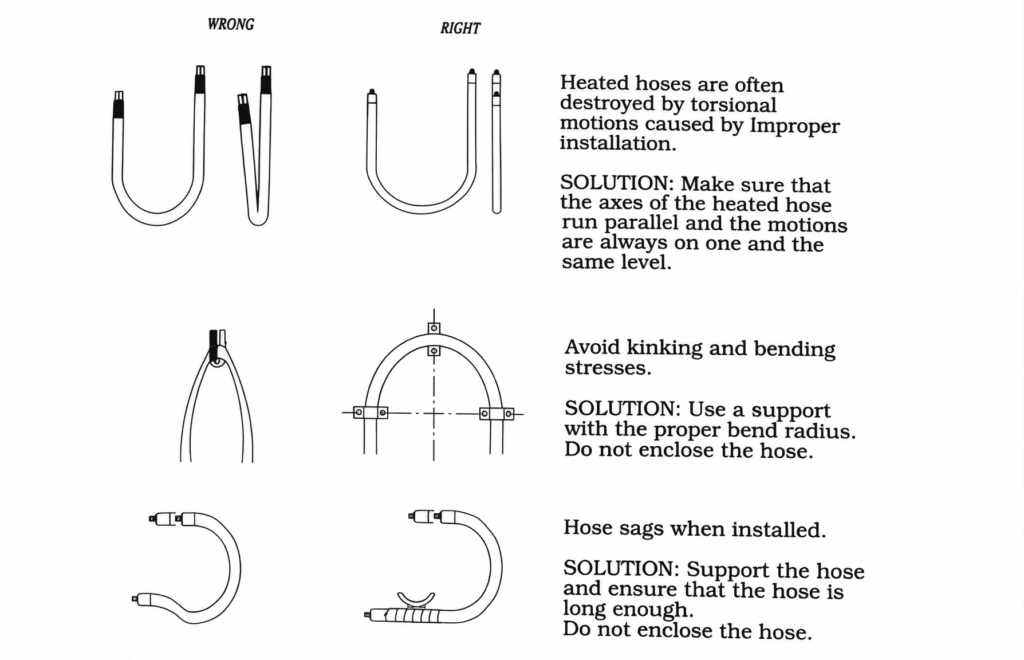

iv. Handling Instructions (Can't)

v. Installation

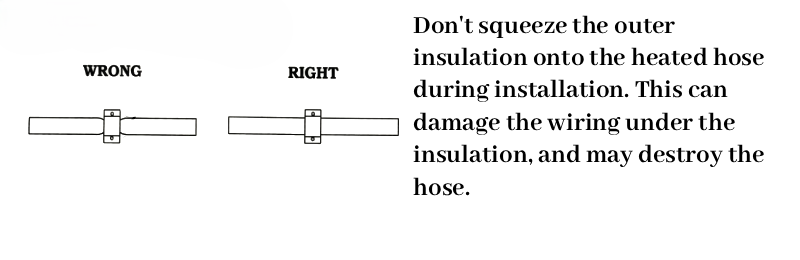

vi. Installation (Can't)
