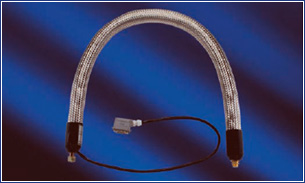

Heated Hoses

Flexible Heated Hoses manufacture bespoke heated hoses.


Typical heated hose applications:

  • hot melt machines
  • wax transfer systems
  • polyurethane foaming equipment
  • insulated glass machinery
  • gas analysis measuring equipment
  • chemical dosing systems
  • bitumen transfer
  • heavy fuel oil systems
  • food treatment and transfer
  • packaging equipment

Features of our heated hoses:

All our heated hoses are constructed using the highest quality materials and are designed to be flexible and strong. They are able to withstand high temperatures and pressures. All our heated hoses are sheathed with heating elements and contain temperature probes to ensure the fluid viscosity is maintained over long distances. Features of our heated hoses include:

  • Flexible constructions
  • Good temperature stability and heat distribution
  • Bespoke manufacture to customers specification or existing pattern
  • Built to withstand high temperatures and pressures
  • Suitable for liquid and gas transfer

Specification

The standard specification for our heated hoses is shown below. should you have specific requirements outside the ranges specified below, please contact us on sales@flexibleheatedhoses.com or call 0121 753 0077

Operating Voltage Typically 115V to 440V
Maximum Operating Temperature 600 deg c
Temperature Probe Thermocouple thermisters, PT100, RT120
Tube Diameter typically 1mm to 55mm but we can
Inner Tube PTFE tube smooth bore or convoluted with up to 6 layers of Stainless Steel overbraiding. We also do SS convoluted cores
Heating Element Spiral wound resistive heating element
Thermal Insulation Silicon sponge closed cell for up to 220 deg for higher temperatures nomex up to 600 deg
Maximum Length 6 in to 60-70ft
Lead length Made to suit customer, standard length 2m
End Fittings Virtually any industry standard end fitting can be supplied
Maximum Operating Pressure Please discuss your requirements


Application in general

  • Frost protection for different media
  • Prevention of condensation
  • Maintenance of liquids or gases at working temperature
  • Transportation of gas samples from the measurement point toan analyzer
  • Medium transportation of high viscosity materials in a fluid state
  • Medium transportation where certain temperatures are essentialfor the fabrication characteristic
  • Medium carrier must be transportable or moveable due to amobile supply station

Application examples

  • Analysis Measurement
  • Hot Melt Machines
  • Polyurethane foaming equipment
  • Wax processing equipment
  • Bitumen processing equipment
  • Heavy oil processing equipment
  • Food processing equipment
  • Filling Machines

End fittings





















Material

  •  Stainless steel
  • Steel bichromate coated
  • Special materials upon request

Special materials and fittings upon request
